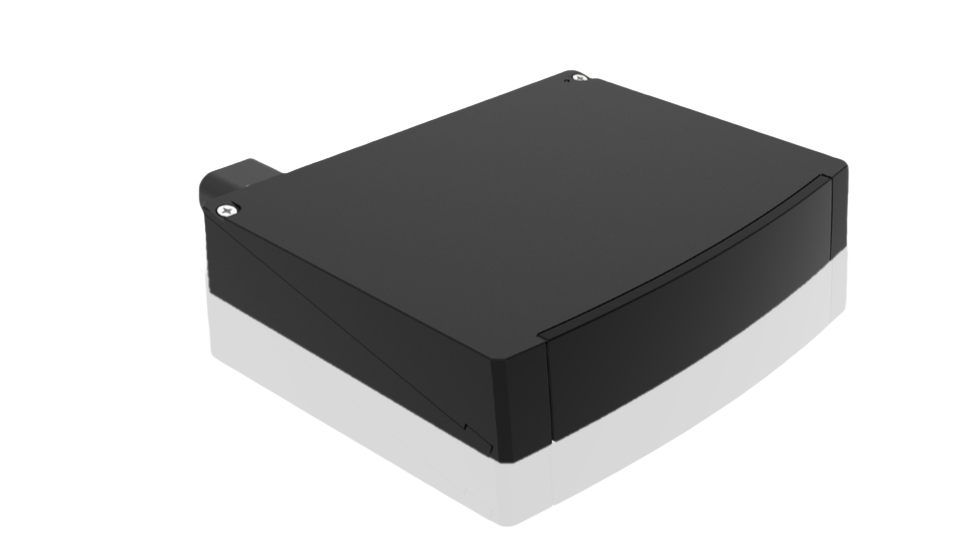

AOD192 is engineered on an advanced, automotive-grade digital platform for frontal LiDAR applications. It generates a high-definition point cloud with a true 192-beam resolution, achieving a data rate of up to 1.53 million points per second. Key specifications include a long detection range of up to 300 meters and a wide 120° horizontal field of view (FOV). Thanks to its highly efficient system design, AOD192 features an ultra-slim 24mm profile, enabling versatile integration options such as mounting on the roof, in the bumper, or even within the cabin.

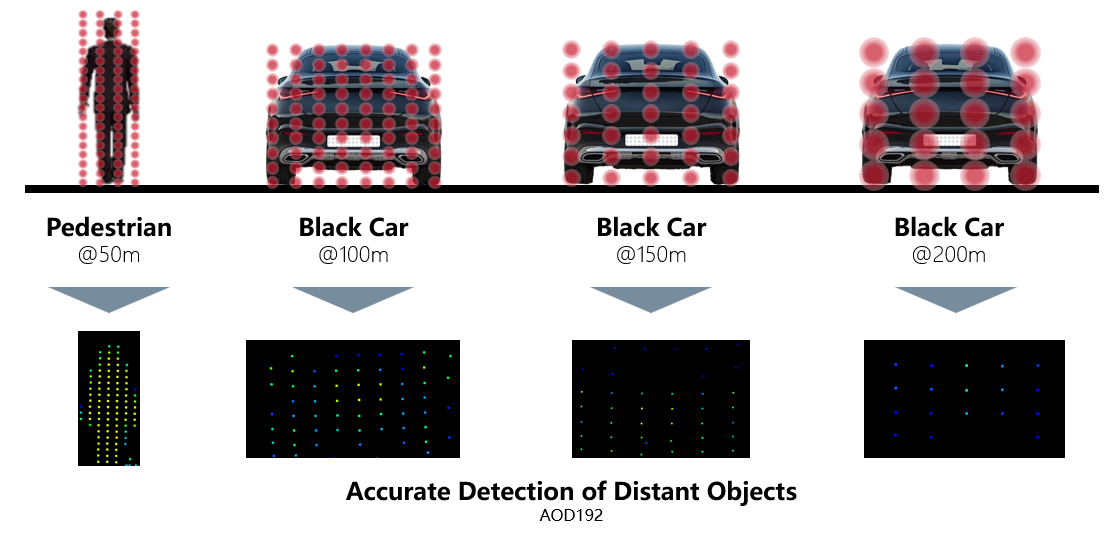

Expansive Coverage: Detects objects up to 300 meters away across a wide 120° horizontal field of view.
Superior Detail: True 192-beam resolution provides the granular data needed for confident decision-making.
Optimized for Scalability: A streamlined architecture and efficient manufacturing process deliver exceptional performance at a competitive price point, accelerating the mass adoption of advanced safety features.
Seamless Integration: An ultra-slim 24mm profile allows for flexible mounting options, from discreet bumper integration to in-cabin placement.
| AOD192 | ||||||||
| Architecture | Range | Ranging Capability @10% Reflectivity | FOV | Angular Resolution | Frame rate | Power Consumption | Dimensions HxWxD | Operating Temperature |
| VCSEL + SPAD | 1m~300m | 180m | 120° x 20° | 0.15° x 0.1° | 10Hz，Up to 20Hz | 12W | 140 x 106 x 24 | -40°C~85°C |
